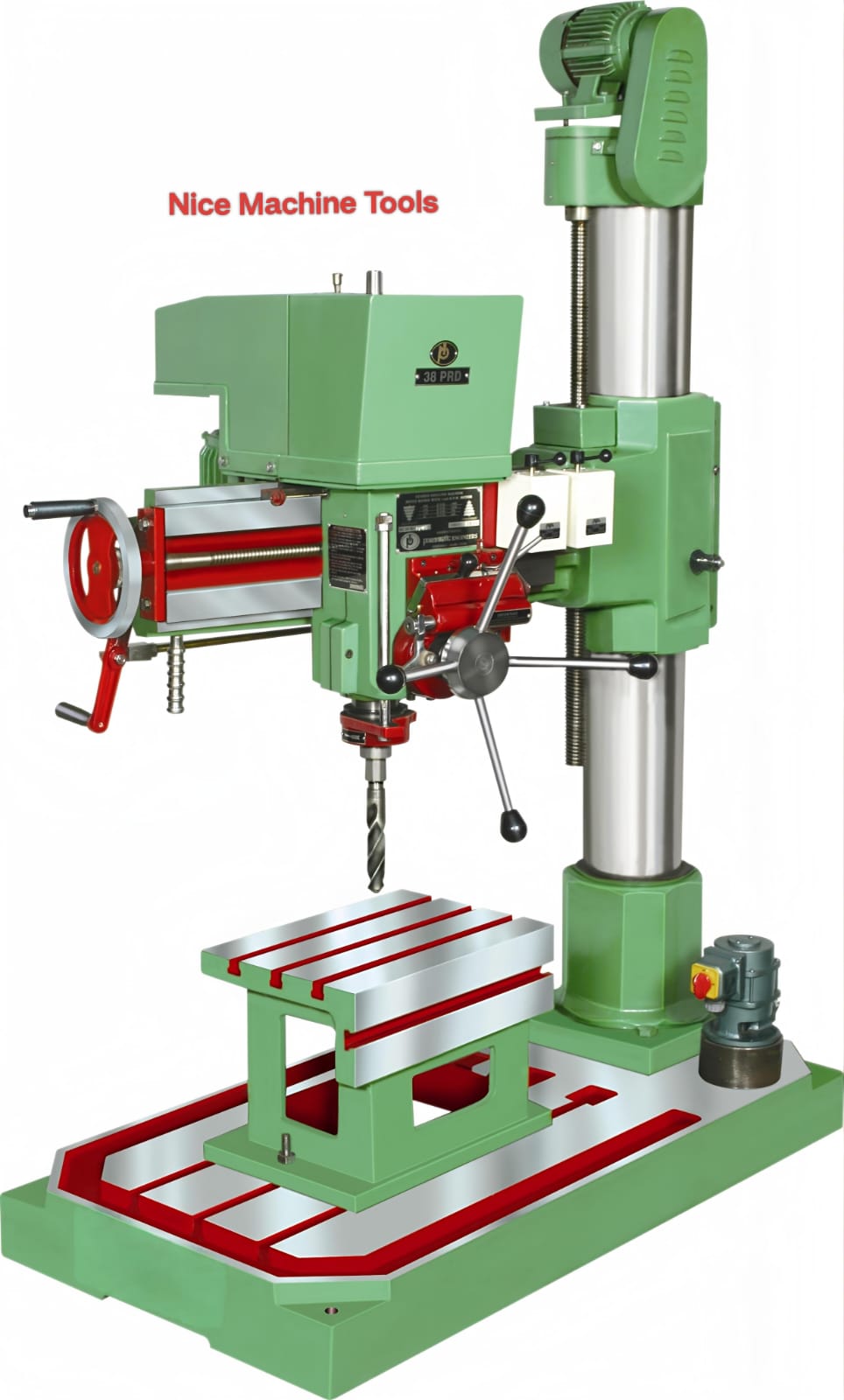

Capacity m.m. Drilling in Steel 38 Drilling in C.I. 38 Spindle travel 225 Spindle taper MT-4 No. of spindle speeds 8 Range of spindle speeds 65-1980 No. of feed 02 Feed value mm/rev. 0.08-0.04 Working Range Column Diameter 165 Max./Minimum dist. between spindle centre to column face 855/310 Max./Minimum dist. between spindle nose to base plate 860/200 Vertical movement of arm on column -- Size of base plate 1285x685x130 working surface of table 465x340 General Number/Centre distance of “T” slots for base plate 3-138 Size of “T” slots for base plate M-16 Number/Centre distance of “T” slots for working table 3-80 Size of “T” slots for working table M-16 Weight of the machine (Approx.) 950 kg. Overall dimension of the machine 2000x1330x915 Shipping dimension of the machine 2100x1430x1015 Power Drilling head motor 1.5 H.P./3ǿ -50Hz/1440 RPM Arm elevating head motor 0.5 H.P./3ǿ -50Hz/1440 RPM Coolant pump motor 0.25 H.P./3ǿ -50Hz/2880 RPM 'V'-Belt Size Drilling head motor B-47
